Low Profile Famicom to NES Converter PCB

Description

Low Profile Famicom to NES Converter PCB

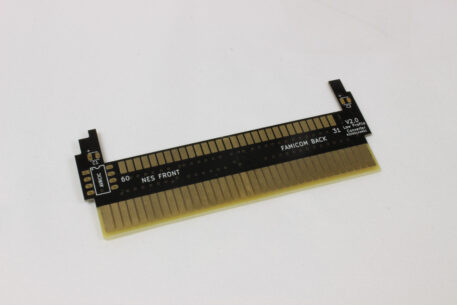

Low Profile Famicom to NES Converter that can be placed inside an NES shell. Expansion audio is connected to pin 54 and 51 of the NES connector, and will work with an NES modded for expansion audio.

Component List

60 Pin Famicom Edge Connector

Lockout Chip – AVRCIC (Here)

C1,C2 – 22uf 16V Capacitor (Here)

Instructions/Tutorials

Build instructions/tutorials aren’t available at this time. If you are uncomfortable or new to building your own cartridges please wait for tutorials to become available.
