Muramasa Disk System Cartridge and NES Expansion Bridge

Description

PRE-ORDER – PLEASE READ BEFORE ORDERING

• This listing is to Pre-Order a Muramasa Disk System Cartridge Bundle.
• We are currently estimating a ship date of February 28th 2025 in order to not conflict with other projects. It is possible this will ship much sooner depending on the quantity sold and other factors. If you need a delay in shipping please add it to the order notes.
• Please carefully read the listing and watch the video to understand the features. The video can be found here.

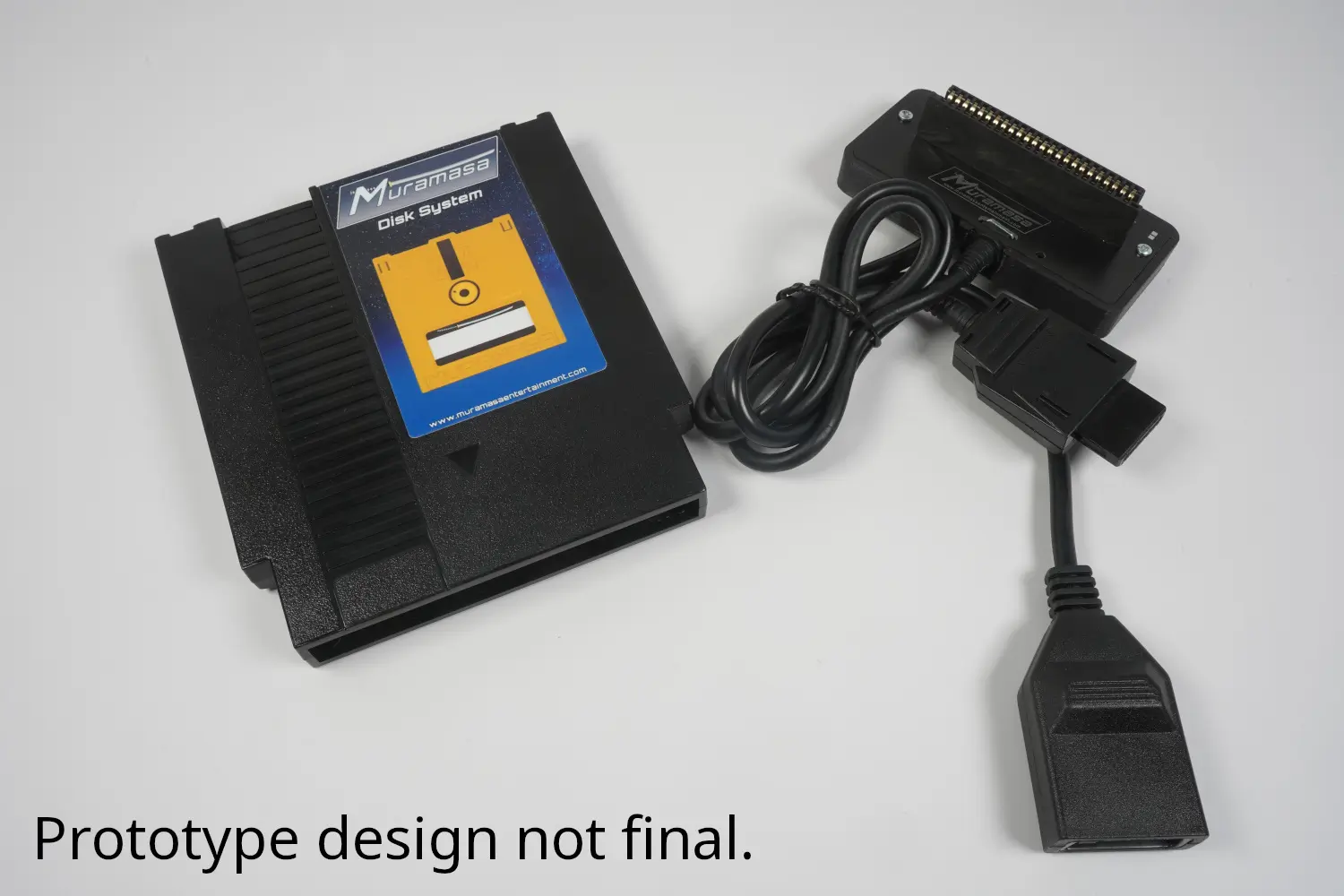

Muramasa Disk System Cartridge and NES Expansion Bridge.

The Muramasa Disk System Cartridge allows the playback of Famicom Disk System games on the original NES Front Loader (NES-001). The Muramasa Disk System Cartridge is a NES version of the Nintendo Famicom Disk Ram Adapter (HVC-023). The adapter routes the disk drive signals through the NES Expansion Port pins to the NES Expansion Bridge which connects to the Nintendo Famicom Disk System (HVC-022). The cartridge is made with an original RP2C33 taken from an original ram adapter cartridge.

Please note that the EXP port must be available and uncovered for this kit to work. There is a plastic covering that must be removed by the end user.

If you are interested in a potential kit see the listing here.

Please also be sure to check out the video if you have any questions.

Expansion Bridge Features:

• Volume control for expansion audio using a 100k potentiometer.
• Expansion audio toggle switch for systems with or without internal audio mods.
• Expandable controller modules with future modules planned (Such as wireless BlueRetro module, and fourscore module)

Important Notes:

• Modification Required: The NES Front Loader’s expansion port cover must be removed to use the NES Expansion Bridge. Instructions are provided in the video.
• Not Compatible with PAL Systems: Like the original Famicom Disk Ram Cartridge the Muramasa Disk System Cartridge only works for original NTSC based systems only.

What is included?

• Muramasa Disk System Cartridge – Expansion Version.
• NES Expansion Bridge with disk system cable as well as Famicom expansion cable.
• Famicom Expansion Controller Add-on.

Items NOT included needed for operation.

• NES Front Loader system (NES-001) with all needed cables.
• Working Famicom Disk System Drive with power cable.
• Working Famicom Disk System Games.

Keywords: Famicom Disk System RAM Adapter, FDS2NES, FDS to NES Adapter, NES Disk Drive, NES Disk Cartridge and NES Ram Cartridge.
