SNES Basic DIP42 2MB (Green)

Description

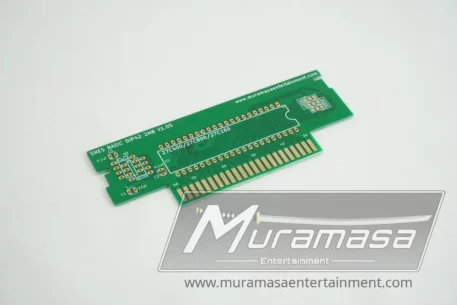

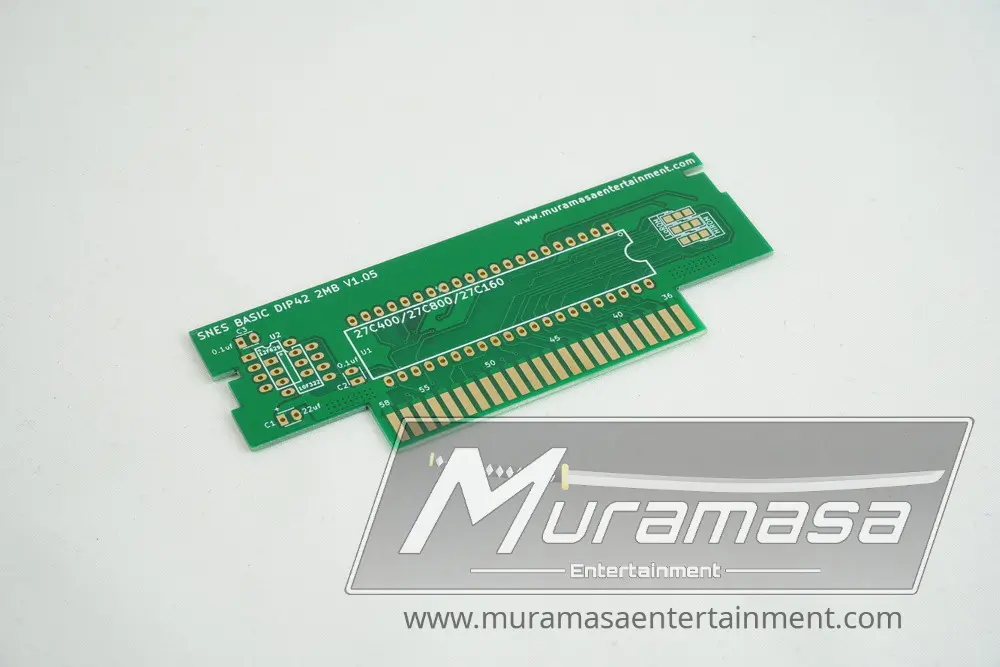

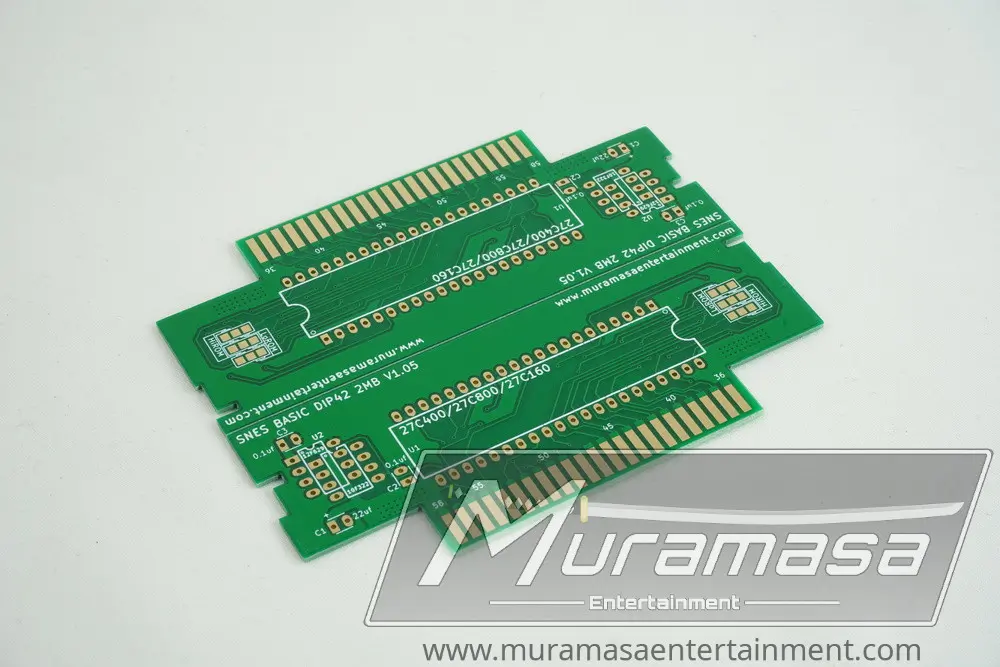

SNES Basic DIP42 2MB

The SNES Basic DIP42 2MB is a homebrew or reproduction board that supports LoROM and HiROM games up to 4MB (32 Megabit) with a 42 Pin EPROM.

Component List

ROM – 27C160/27C322 or compatible. (Not Carried)

Lockout Chip – SuperCIC Key (12F629 or 10F322 programmed with Super CIC Key) (SuperCIC 12F629 HERE)

C1 – 22uf 16V Capacitor (HERE)

C2,C3 – 0.1uf 50V Capacitor (HERE)

Instructions/Tutorials

Build instructions/tutorials aren’t available at this time. If you are uncomfortable or new to building your own cartridges please wait for tutorials to become available.
